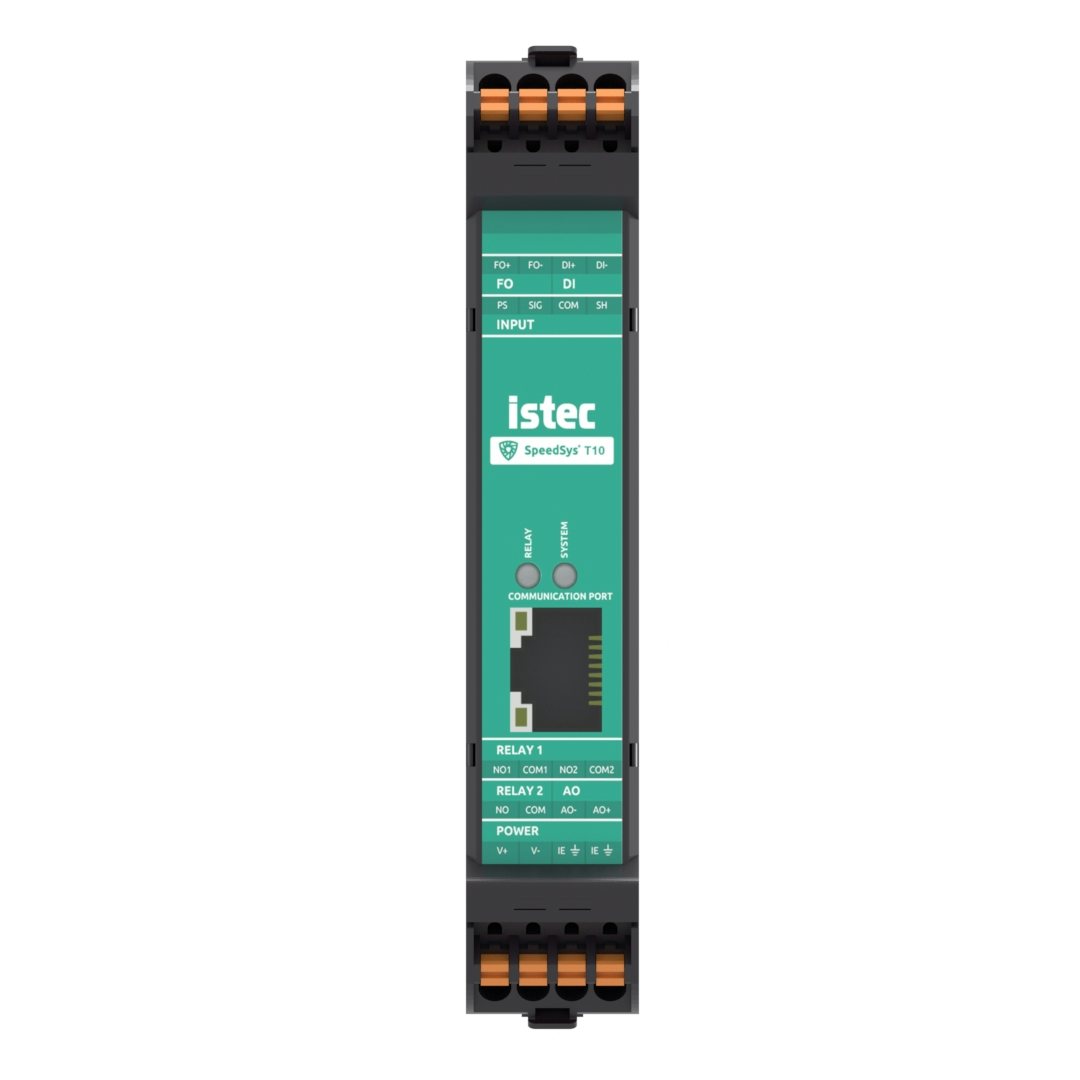

Istec SpeedSys T10
The SpeedSys T10 is a single-channel speed monitor and switch that delivers speed monitoring functions to rotating equipment. It converts the signals from speed sensors to processed outputs. Its small technical footprint allows for a low-impact installation, to enable speed monitoring to a wide range of applications. The T10 is part of the SpeedSys tachometer series with the T11, T20 and T30.
SpeedSys T11 for 1-channel speed monitoring and switching (with display) »
SpeedSys T20 for 2-channel speed monitoring and switching »
SpeedSys T30 for 3-channel speed monitoring and switching »
The ultimate speed transmitter
The system has two configurable high speed relays for multiple speed functions and a highly accurate analog output for further processing.
Easy to use and integrate
The SpeedSys T10 accepts a wide variety of sensor inputs, comes with an accessible software suite, and has a Modbus interface for further integration.
Small technical and financial impact
The SpeedSys T10 is a DIN-rail frequency converter that provides a cost-effective solution for speed monitoring functions on rotating machinery.
Design
The SpeedSys T10 has two relays. The system accepts signal inputs from 3-wire voltage sensors (Hall-effect & proximity) and 2-wire voltage sensors (MPU).
Due to its compact design the T10 has a small technical footprint and features a low-impact installation. The T10 comes with easy to use push-in connectors and is mounted on a DIN-rail.
Configuration
Applications
The SpeedSys T10 is used as a monitoring and switching device for speed conditions on rotating machinery. Typical applications are:
- Aeroderivatives
- Micro turbines
- Wind turbines
- Gas- and steam turbines
- Hydro turbines (Kaplan, Francis, Pelton)
- Compressors
- Expanders
- Marine applications
- Elevators
- General automation
System
System features
- Fast 8 ms hardware response time (relays)
- Highly accurate analog signal (4-20 mA)
- Signal filter and line amplifier
- 2 high speed relays:
- 1x DPST
- 1x SPST
Support
SpeedSys family
SpeedSys is a family of (SIL-rated) protection and monitoring systems for rotating machinery that deliver advanced monitoring and protection on speed functions.
SpeedSys tachometer series (non SIL)
- T10 1-channel speed monitor and switch
- T11 1-channel speed monitor and switch (with display)
- T20 2-channel speed monitor and switch
- T30 3-channel speed monitor and switch
